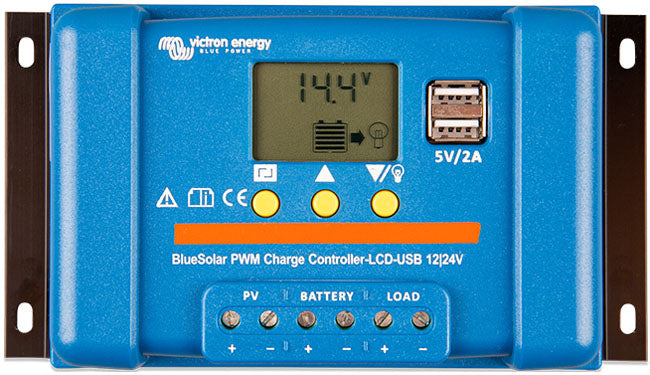

Victron Solar Controller PWM 12-24V 30Amp

Victron Solar Controller PWM 12-24V 30Amp

  • Accessories
$82 NZD $0 NZD /
Subscription
Height: 101mm
Length: 184mm
Width: 47mm
Voltage: 12-24 Volt
Amperage: 30
Warranty: 36 Months
Related Tags: 30amp, motorhome, Motorhome battery charger, solar, solar controller, Victron

Price includes GST


Description

Victron 12-24Volt PWM Solar Controller

Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A

  • Load output with low battery voltage disconnect function.
  • Lighting control function, one timer only.
  • Two digit seven segment display for quick and easy setting of the load output functionality, including timer setting.
  • Three stage battery charging (bulk, absorption, float), not programmable.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.

FEATURES
Battery Voltage: 12/24 V with automatic system voltage detection
Rated charge current: 30A
Automatic load disconnect: Yes
Maximum solar voltage: 28V / 55V (for 12V use 36 cell solar panels, for 24V use 72 cell solar panels or 2 x 36 cell in series)
Self-consumption: < 10 mA
Load output: Manual control + low voltage disconnect + timer
Protection: Battery reverse polarity (fuse), Output short circuit, Over temperature
Overload protection: Shut down after 60s in case of 130% load, Shut down after 5s in case of 160% load, Short circuit: immediate shut down
Grounding: Common positive
Operating temp. range: -30 to +60C (full load)
Humidity (non-condensing): Max 95%

BATTERY
Charge voltage 'absorption': Factory Setting: 14.4V / 28,8V
Charge voltage 'float': 13.7V / 27,4V (The controller switches to the lower float voltage level 2 hours after the absorption voltage has been reached.
Whenever the battery voltage becomes lower than 13V, a new charge cycle is triggered).
Low voltage load disconnect: Factory Setting: 11,2V / 22,4V
Low voltage load reconnect: Factory Setting: 12,6V / 25,2V (manual), 13,1V / 26,2V (automatic)

USB
Voltage: 5V
Current: 2A (total from 2 outputs)
