Solar Controller PWM 12-24V 10Amp

Solar Controller PWM 12-24V 10Amp

  • Accessories
$45 NZD $0 NZD /
Subscription
Height: 70mm
Length: 133mm
Width: 34mm
Voltage: 12-24 Volt
Amperage: 10
Warranty: 36 Months
Related Tags: 10amp, motorhome, Motorhome battery charger, solar, solar controller, Victron

Price includes GST


Description

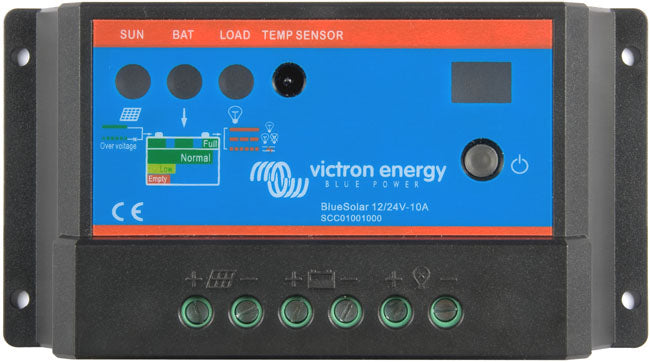

Victron 12-24Volt PWM Solar Controller

FEATURES
Battery Voltage: 12/24 V with automatic system voltage detection
Rated charge current: 10A
Automatic load disconnect: Yes
Maximum solar voltage: 28V / 55V (for 12V use 36 cell solar panels, for 24V use 72 cell solar panels or 2 x 36 cell in series)
Self-consumption: < 10 mA
Load output: Manual control + low voltage disconnect
Protection: Battery reverse polarity (fuse) , Output short circuit, Over temperature
Overload protection: Shut down after 60 s in case of 130% load, Shut down after 5 s in case of 160% load, Short circuit: immediate shut down
Grounding: Common positive
Operating temp. range: -20 to +50C (full load)
Humidity (non-condensing): Max 95%

BATTERY
Charge voltage 'absorption': 14.2V / 28,4V
Charge voltage 'float': 13.8V / 27,6V
Low voltage load disconnect: 11,2V / 22,4V
Low voltage load reconnect: 12,6V / 25,2V (manual), 13,1V / 26,2V (automatic)
